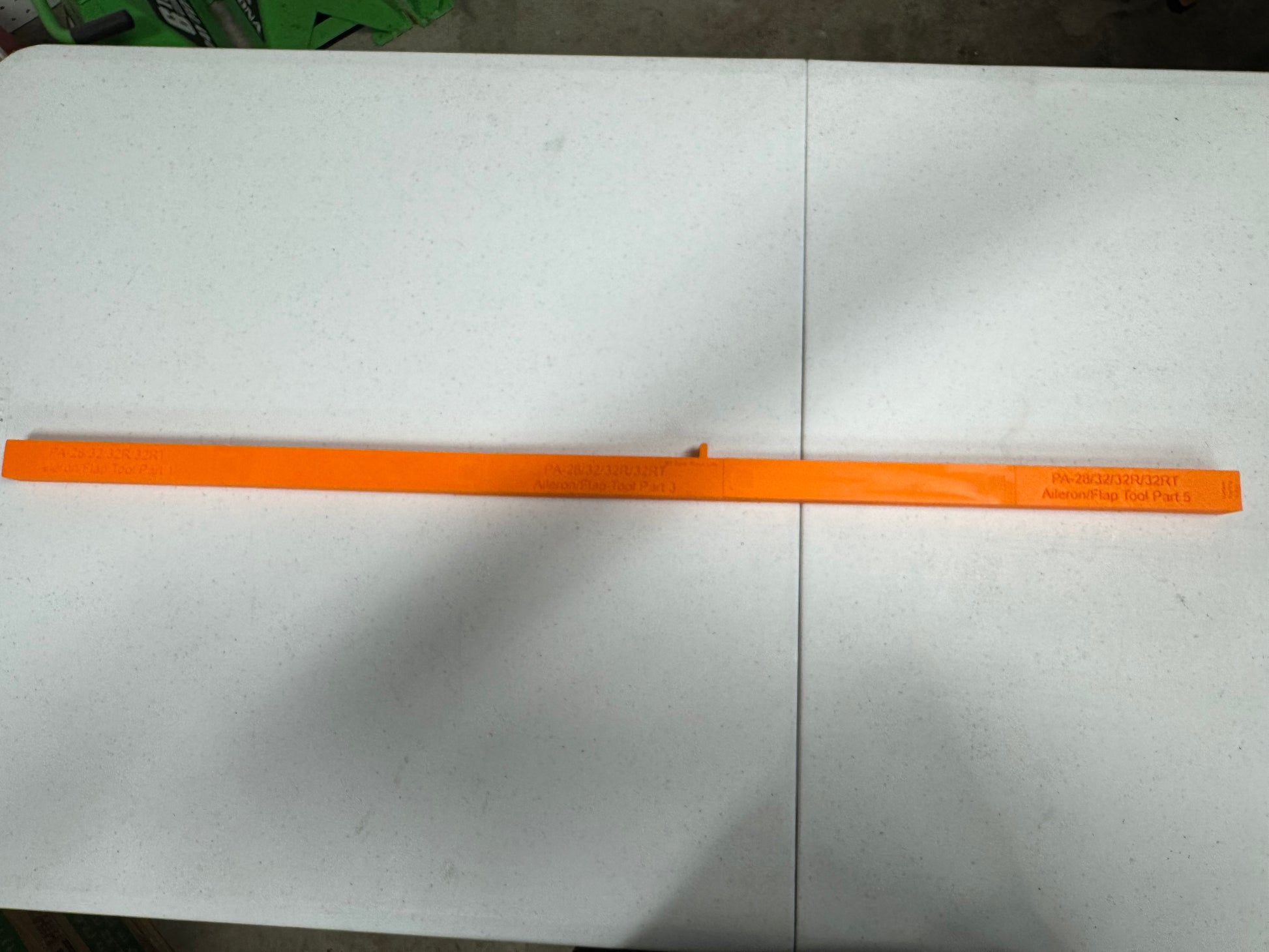

Piper Aileron and Flap Rigging Tool for PA-28/28R, PA-32/32R/32RT, and PA-44 Aircraft

This rigging tool allows proper travel adjustment and rigging of the Aileron and Flap for the following Piper Aircraft:

PA-28-140, 150, 151, 160, 161, 180, 181, 201T, 235, 236

PA-28R-180, 200, 201/201T,

PA-28RT-201/201T

PA-32-260, 300

PA-32R-300, 301/301T

PA-32RT-300/300T

PA-44-180/180T

Bellcrank tools are not included with the Aileron and Flap rigging tool. All bellcrank tools are available in the Piper Aileron Bellcrank Tools Kit also found on my website.

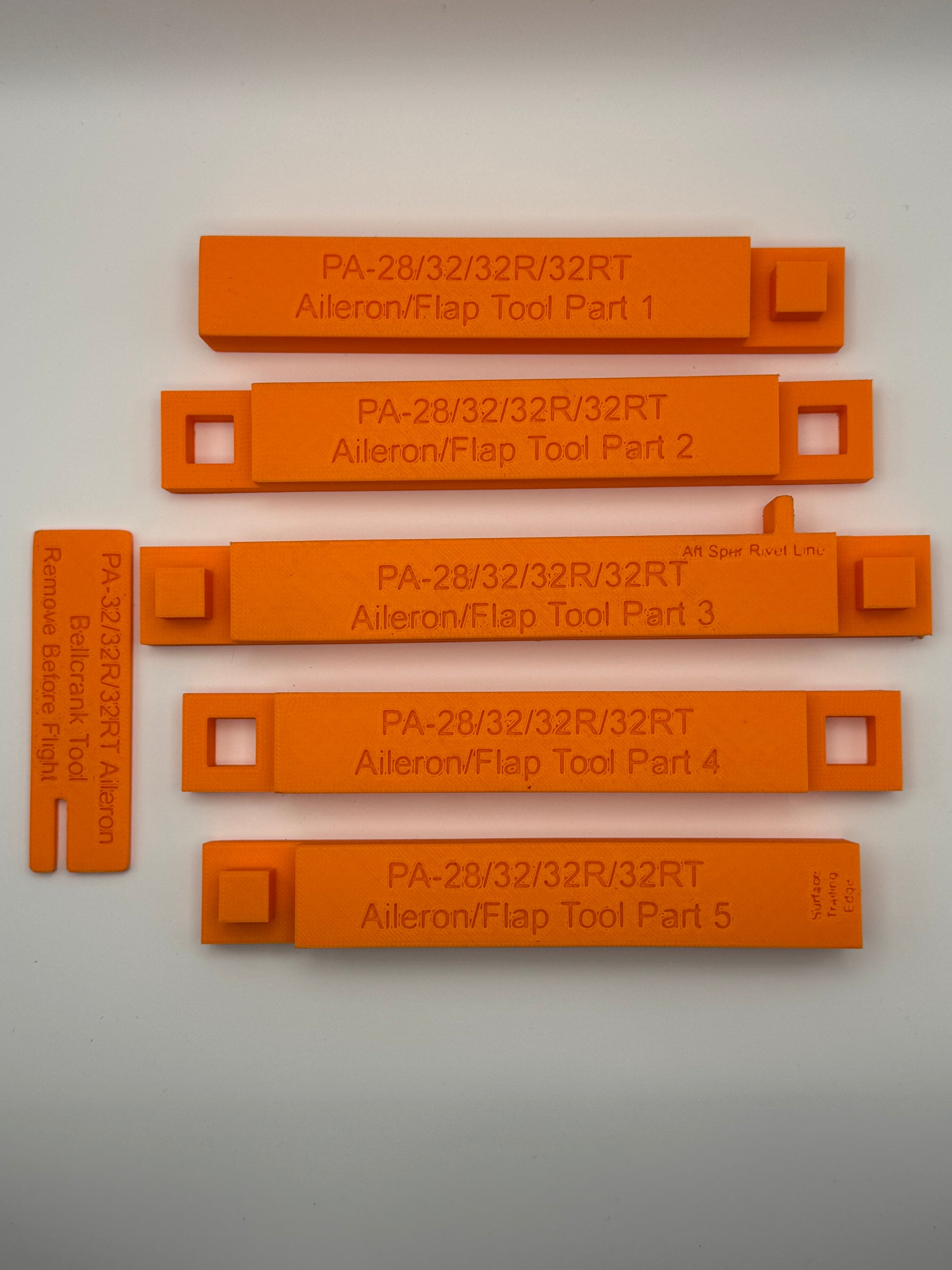

Set includes glue to assemble surface rigging tool.

NOTE: All rigging of any aircraft’s flight controls must be done in accordance with the Aircraft Maintenance Manual’s instructions. All rigging tools must be removed before flight. Failure to do so may result in injury to person and/or damage to aircraft or equipment.
